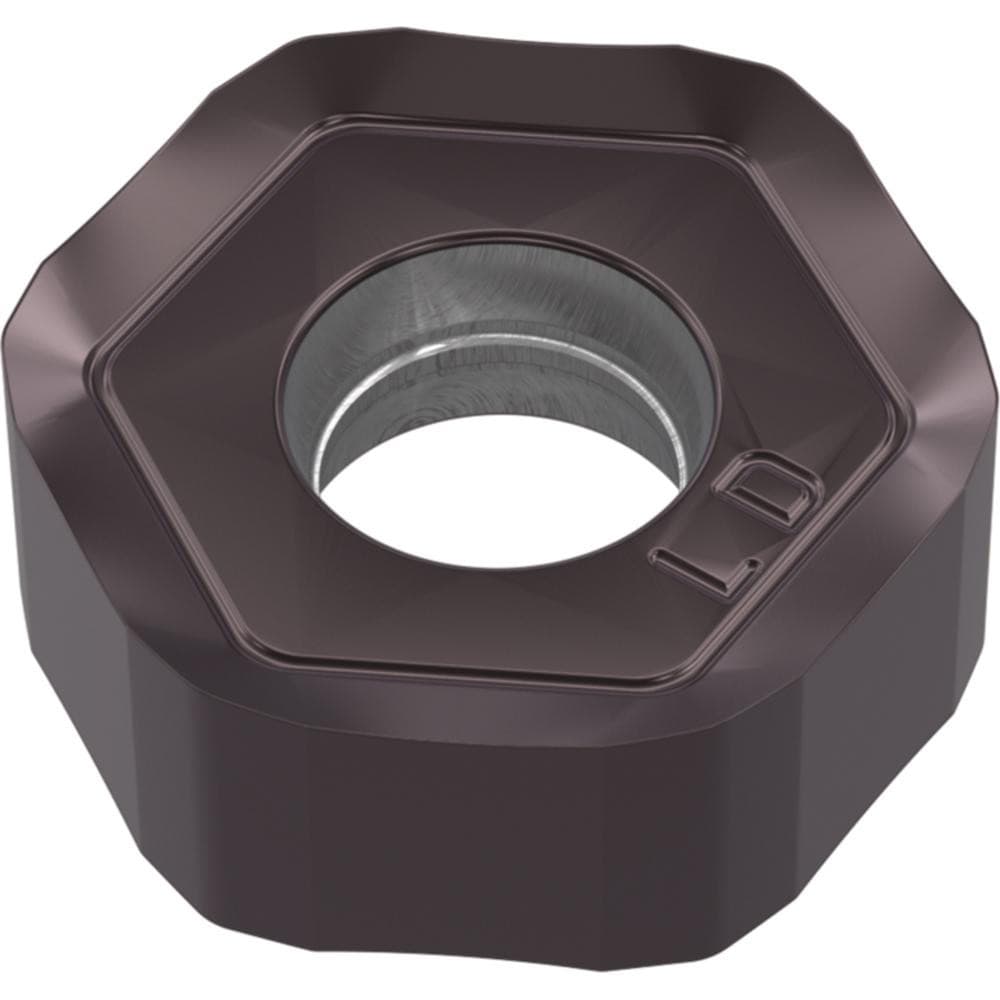

Brand: Widia / Part #: 6180300

Brand: Widia / Part #: 6180300


Item #: 29029063
Brand: Widia
Model #: 6180300

Product Specifications

Insert Style HNGJ
Insert Size Code 0704
Insert Size 07
Insert Material Carbide
Width (Inch) 1/2
Manufacturer Grade WS40PM
Length (Inch) 1/2
Inscribed Circle (Inch) 1/2
Inscribed Circle (Decimal Inch) 0.5000
Corner Radius (Decimal Inch) 0.1264
Insert Hand Neutral
Relief Angle 0.000
Series M1200
Coating Process PVD
Hole Diameter (Mm) ( - 0 Decimals) 5.0000
Hole Diameter (Decimal Inch) 0.1969
Maximum Depth of Cut (Decimal Inch) 0.2362
Number Of Cutting Edges 12
Insert Shape Hexagon
Rake Negative
Primary Workpiece Material Stainless Steel; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; M
Secondary Workpiece Material Non-Ferrous Metal
Secondary Workpiece Material Code N
Ansi Code HNGJ070432ANENLD
Iso Code HNGJ070432ANENLD
Manufacturers Catalog Number HNGJ070432ANENLD
Cutter Series Compatibility M1200 HN0704 IN
Chip Breaker LD
Cutting Direction Neutral
Material Application High-Temperature Alloy; Stainless Steel; Steel
Shape Hexagon
Length of Cut (mm) 6.0000
Insert Holding Method Screw
Coating Classification PVD
Single or Double Sided Insert Double
Coating/Finish TiN; TiAlN
Included Angle Degree 120
Width (Decimal Inch - 4 Decimals) 0.5000
Thickness (Decimal Inch - 4 Decimals) 0.1764
Multi-Use Tool Yes
Length (Decimal Inch - 4 Decimals) 0.5000
$22.68
