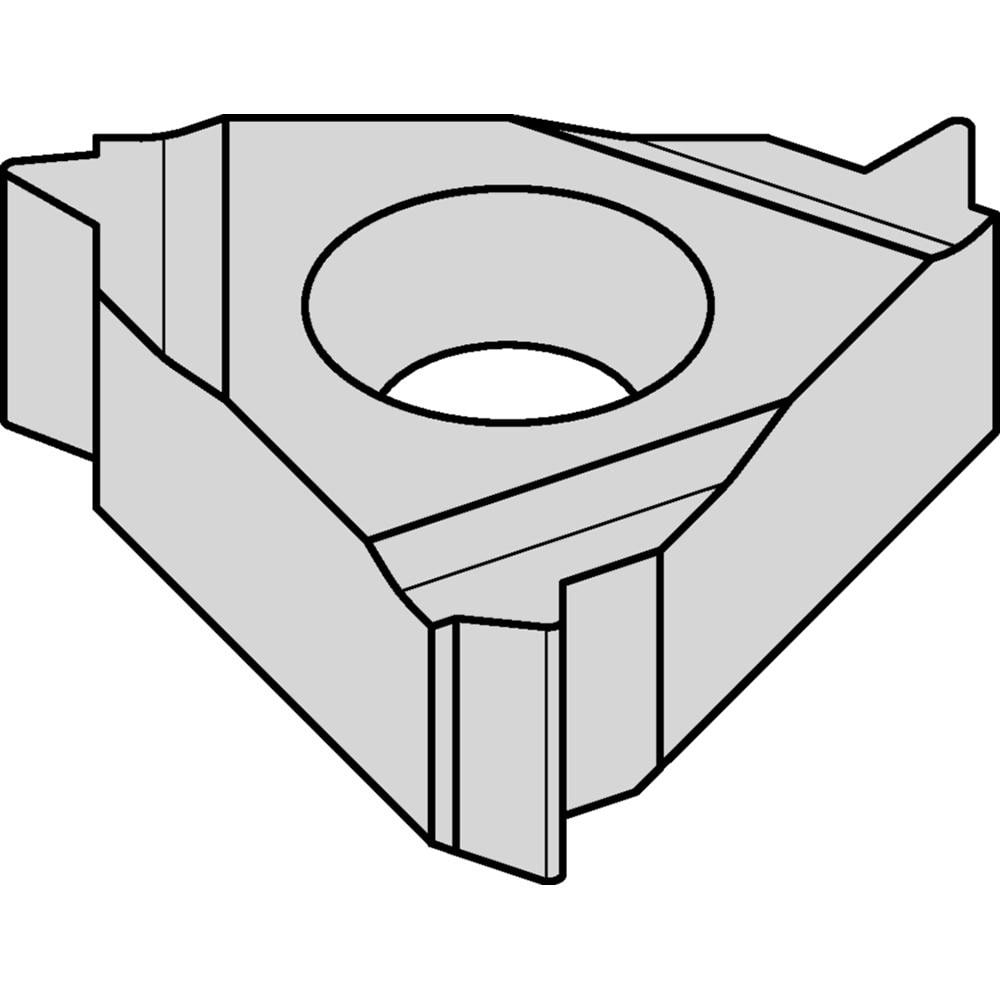

Brand: Widia / Part #: 2018882

Brand: Widia / Part #: 2018882


Item #: 99579153
Brand: Widia
Model #: 2018882

Product Specifications

Insert Style IR
Insert Size Code 2
Insert Material Carbide
Manufacturer Grade TN6025
Material Grade TiAlN
Threads Per Inch 18
Thread Type Internal
Thread Standard UN
Insert Hand Right Hand
Thickness (Inch) 1/8
Included Angle 60.00
Chipbreaker None
Series 2IR
Coating Process PVD
Inscribed Circle (Inch) 1/4
Hole Diameter (Decimal Inch) 0.1260
Rake Positive
Primary Workpiece Material Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M
Secondary Workpiece Material Non-Ferrous Metal
Secondary Workpiece Material Code N
Ansi Code 2IR18UN
Iso Code 2IR18UN
Cutting Edge to Theoretical Edge Length (Decimal Inch) 0.039
Face of Insert to Tip Centerline (Decimal Inch) 0.031
Number of Teeth Per Side 1
Cutting Direction Right Hand
Manufacturers Catalog Number 2IR18UN
Coating Classification PVD
Thickness (Decimal Inch - 4 Decimals) 0.1250
Coating/Finish TiAlN
$22.68
