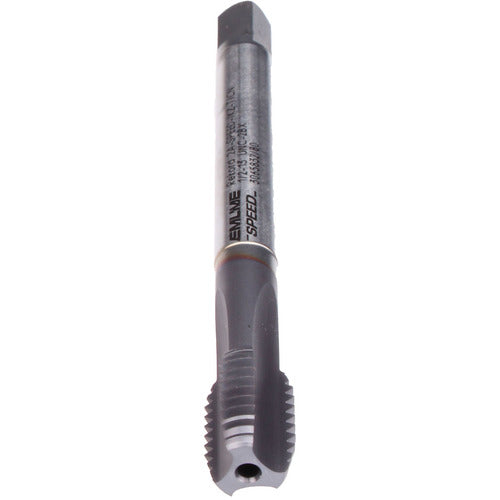

5/8-18-REK-SPEED TAP-TICN
Item #: ER45W1594015049
Brand: EMUGE-FRANKEN
Model #: CW159401.5049
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 5/8″ |
| Standard | DIN | ANSI |
| Threads per Inch (TPI) | 18 |
| Tool Type | Rekord A-Speed |
| Thread Standard | UNF |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 4.331″ |
| Coating | TiCN |
| Connection Diameter Machine Side (DCONMS) | 0.48″ |
| Flute Type | Straight |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 0 Degrees |
| Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | Cast Iron |
| Measurement Type | Inch |
| Cutting Edge Material | HSSE |
| Series/List # | W159401 |
| Thread Tolerance Class (TCTR) | 2BX |
| Thread Size | 5/8″ - 18 |
