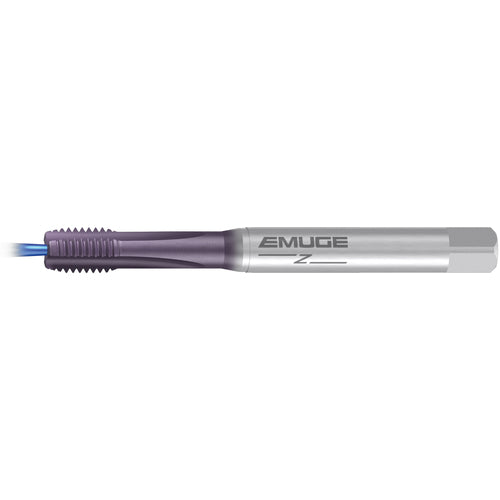

CU969401.5014 REKORD A-Z
Item #: ER45U9694015014
Brand: EMUGE-FRANKEN
Model #: CU969401.5014
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 9/16″ |
| Standard | DIN | ANSI |
| Threads per Inch (TPI) | 12 |
| Tool Type | Rekord A-Z |
| Thread Standard | UNC |
| Chamfer | 1.5P-2P |
| Overall Length (OAL) | 4.331″ |
| Coating | TiCN |
| Connection Diameter Machine Side (DCONMS) | 0.429″ |
| Flute Type | Straight |
| Flute Helix Angle (FHA) | 0 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Cast Iron |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | HSSE |
| Thread Size | 9/16″ - 12 |
| Thread Tolerance Class (TCTR) | 2BX |
