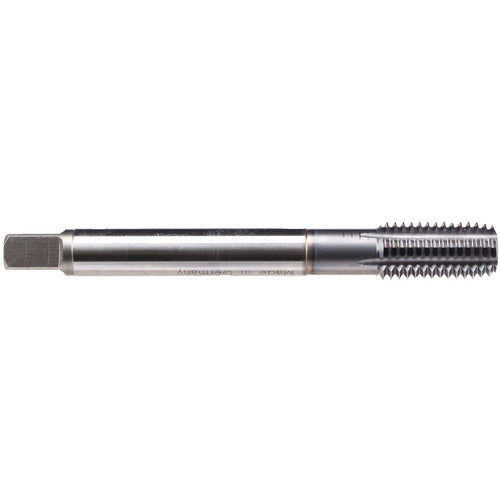

STI 1/2-20-TAP-DRUCK ROLL
Item #: ER45U9290105643
Brand: EMUGE-FRANKEN
Model #: CU929010.5643
| Product Specifications | |
|---|---|
| Tool Type | STI Tap |
| Chamfer | 2P-3P |
| Style | Bottoming |
| Coating | TiCN |
| Thread Diameter Size (TDZ) | 1/2″ |
| Coolant Supply Property (CSP) | External |
| Thread Tolerance Class (TCTR) | 3BX |
| Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNF |
| Measurement Type | Inch |
| Threads per Inch (TPI) | 20 |
| Connection Diameter Machine Side (DCONMS) | 0.429″ |
| Overall Length (OAL) | 3.937″ |
| Standard | DIN | ANSI |
| Cutting Edge Material | HSSE |
| Series/List # | U929010 |
| Applicable Material | Universal Materials |
| Thread Size | 1/2″ - 20 |
