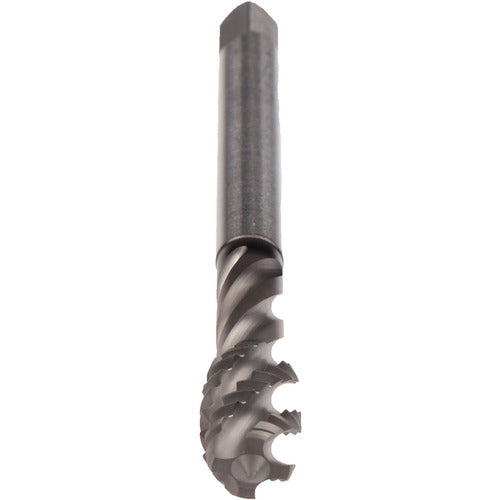

LK 5/8-18 BOTTOM/GLT-1
Item #: ER45U514005719
Brand: EMUGE-FRANKEN
Model #: CU51C400.5719
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 5/8″ |
| Standard | DIN | ANSI |
| Threads per Inch (TPI) | 18 |
| Tool Type | Enorm Z/E |
| Thread Standard | UNF |
| Chamfer | 1.5P-2P |
| Overall Length (OAL) | 3.937″ |
| Coating | GLT-1 |
| Connection Diameter Machine Side (DCONMS) | 0.48″ |
| Flute Type | Spiral |
| Flute Helix Angle (FHA) | 35 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Stainless Steel |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE |
| Measurement Type | Inch |
| Thread Tolerance Class (TCTR) | BT |
