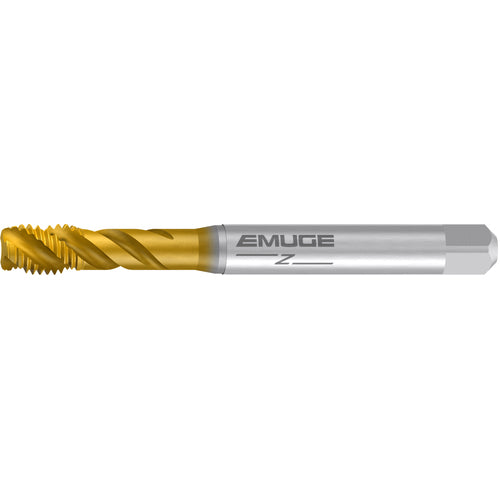

STI 1/2-13-TAP-ENORM Z/E
Item #: ER45U5137105621
Brand: EMUGE-FRANKEN
Model #: CU513710.5621
| Product Specifications | |
|---|---|
| Tool Type | STI Tap |
| Coating | TiN |
| Style | Bottoming |
| Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | 1/2″ |
| Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | 3B |
| Flute Helix Angle (FHA) | 45 Degrees |
| Thread Standard | UNC |
| Flute Type | Spiral |
| Threads per Inch (TPI) | 13 |
| Measurement Type | Inch |
| Overall Length (OAL) | 4.331″ |
| Connection Diameter Machine Side (DCONMS) | 0.48″ |
| Cutting Edge Material | HSSE |
| Standard | DIN | ANSI |
| Flute Count (NOF) | 4 |
| Series/List # | U513710 |
| Applicable Material | Stainless Steel |
| Thread Size | 1/2″ - 13 |
| Chamfer | 1.5P-2P |
