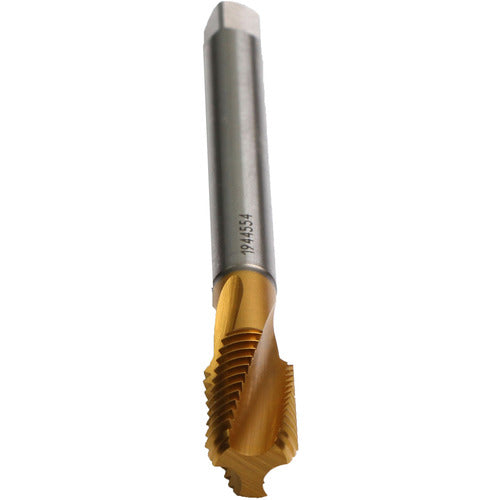

7/8-9-TAP-REKORD D-TIN
Item #: ER45U4514005017
Brand: EMUGE-FRANKEN
Model #: CU451400.5017
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 7/8″ |
| Standard | DIN | ANSI |
| Threads per Inch (TPI) | 9 |
| Tool Type | Rekord D |
| Thread Standard | UNC |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 5.512″ |
| Coating | TiN |
| Connection Diameter Machine Side (DCONMS) | 0.697″ |
| Flute Type | Spiral |
| Flute Helix Angle (FHA) | 15 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Stainless Steel |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE |
| Measurement Type | Inch |
| Thread Tolerance Class (TCTR) | 2B |
