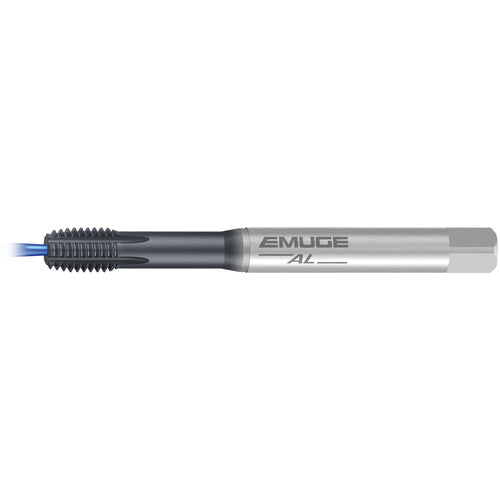

BU44Y700.5044 TAP
Item #: ER45U44Y7005044
Brand: EMUGE-FRANKEN
Model #: BU44Y700.5044
| Product Specifications | |
|---|---|
| Tool Type | Form Tap |
| Coating | GLT-8 |
| Thread Diameter Size (TDZ) | 5/16″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 3.543″ |
| Threads per Inch (TPI) | 24 |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Chamfer | 1.5P-2P |
| Thread Tolerance Class (TCTR) | 2BX |
| Cutting Edge Material | HSSE-PM |
| Tap Standard | DIN | ANSI |
| Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNF |
| Thread Size | 5/16″ - 24 |
| Applicable Material | Aluminum / Non-Ferrous Materials |
