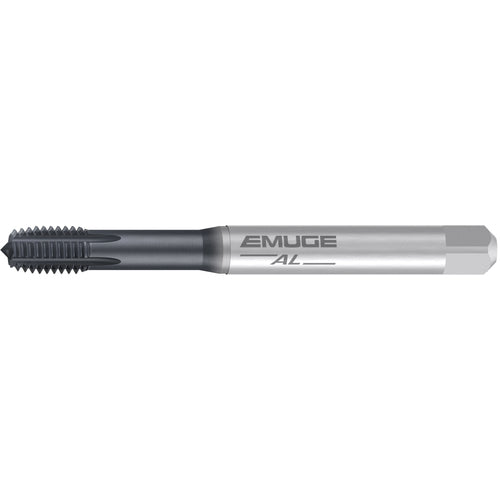

CU37Y700.5012 TAP
Item #: ER45U37Y7005012
Brand: EMUGE-FRANKEN
Model #: CU37Y700.5012
| Product Specifications | |
|---|---|
| Tool Type | Form Tap |
| Coating | GLT-8 |
| Thread Diameter Size (TDZ) | 7/16″ |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 3.937″ |
| Threads per Inch (TPI) | 14 |
| Connection Diameter Machine Side (DCONMS) | 0.323″ |
| Chamfer | 2P-3P |
| Thread Tolerance Class (TCTR) | 2BX |
| Cutting Edge Material | HSSE-PM |
| Tap Standard | DIN | ANSI |
| Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNC |
| Thread Size | 7/16″ - 14 |
| Applicable Material | Aluminum / Non-Ferrous Materials |
