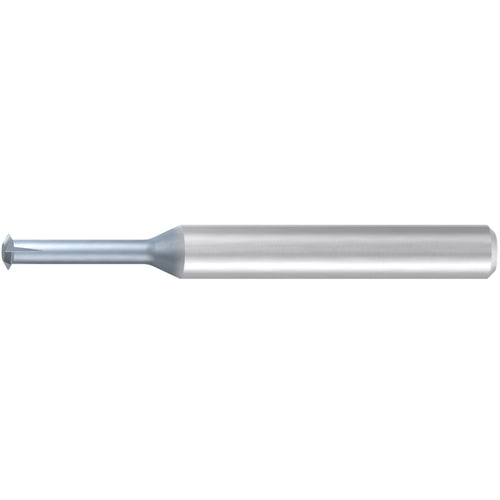

#4- (40 or 48) NC/NF -ZGFI -3xD Thread Mill
Item #: ER45GS837065003
Brand: EMUGE-FRANKEN
Model #: GFS83706.5003
| Product Specifications | |
|---|---|
| Thread Size | #4 |
| Application | Tool for different thread sizes and pitches with correct thread profile |
| Threads per Inch (TPI) | 40 | 48 |
| Applicable Material | Universal Materials |
| Thread Diameter Size (TDZ) | #4 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Thread Standard | UNC | UNF |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Flute Type | Straight |
| Cutting Diameter (DC) | 0.085″ |
| Series/List # | A504524 |
| Overall Length (OAL) | 1-5/8″ |
| Length Group | 3xD |
| Flute Count (NOF) | 3 |
| Tool Type | Thread Mill |
| Shank Type | HB |
| Depth of Cut Maximum (APMX) | 0.336″ |
| Coating | TiCN |
| Cutting Direction (HAND) | Right Hand | Left Hand |
