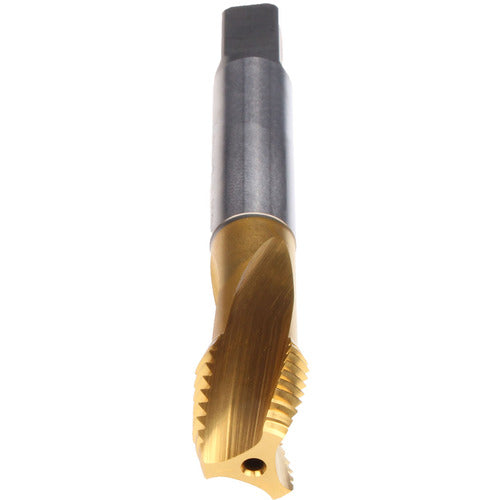

CU293701 5013 1/2-13 DIN 2BX REKORD
Item #: ER45CU8745013
Brand: EMUGE-FRANKEN
Model #: CU293701.5013
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/2″ |
| Thread Tolerance Class (TCTR) | 2BX |
| Threads per Inch (TPI) | 13 |
| Standard | DIN | ANSI |
| Thread Standard | UNC |
| Tool Type | Rekord D - Speed |
| Overall Length (OAL) | 4.331″ |
| Chamfer | 2P-3P |
| Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Coating | TiN |
| Flute Count (NOF) | 3 |
| Flute Type | Spiral |
| Flute Helix Angle (FHA) | 15 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Cast Iron |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | HSSE |
