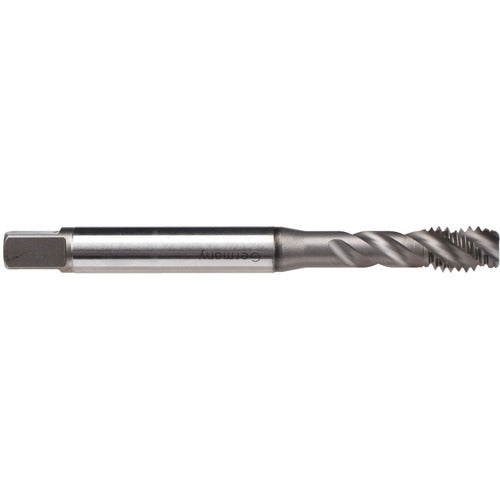

5/16-24-ENZ-BOTT-GLT1-CLN
Item #: ER4599C4005044
Brand: EMUGE-FRANKEN
Model #: BU99C400.5044
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 5/16″ |
| Thread Tolerance Class (TCTR) | 3B |
| Threads per Inch (TPI) | 24 |
| Standard | DIN | ANSI |
| Thread Standard | UNF |
| Tool Type | Enorm Z |
| Overall Length (OAL) | 3.543″ |
| Chamfer | 1.5P-2P |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Coating | GLT-1 |
| Flute Helix Angle (FHA) | 45 Degrees |
| Flute Type | Spiral |
| Applicable Material | Stainless Steel |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSSE |
| Coolant Supply Property (CSP) | Coolant Thru |
