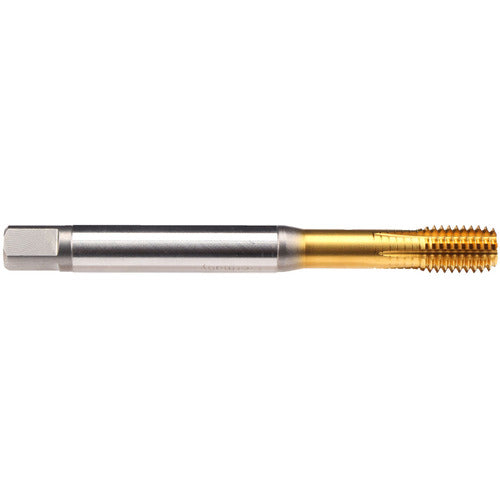

M8-VA/E-STAINLESS STL-IKZ
Item #: ER455316A000080
Brand: EMUGE-FRANKEN
Model #: B5316A00.0080
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Applicable Material | Stainless Steel |
| Thread Diameter Size (TDZ) | M8 |
| Coating | TiN |
| Thread Pitch (TP) | 1.25 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 90 mm |
| Chamfer | 1.5P-2P |
| Usable Length (LU) | 35 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Cutting Edge Material | HSSE-PM |
| Thread Tolerance Class (TCTR) | 6HX |
| Cutting Direction (HAND) | Right Hand |
| Tap Standard | DIN |
| Series/List # | 5316A00 |
| Thread Standard | Metric |
| Thread Size | M8 × 1.25 |
