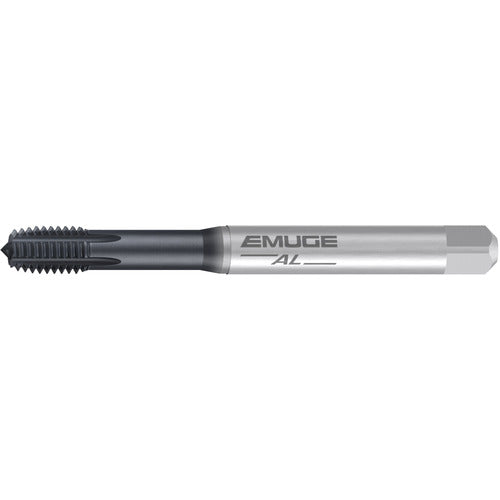

M2.5-INNOFORM-AL-SN-ALUM
Item #: ER45521Y7000025
Brand: EMUGE-FRANKEN
Model #: B521Y700.0025
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Thread Standard | Metric |
| Thread Diameter Size (TDZ) | M2.5 |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Thread Pitch (TP) | 0.45 mm |
| Coating | GLT-8 |
| Overall Length (OAL) | 50 mm |
| Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 2.8 mm |
| Chamfer | 2P-3P |
| Thread Tolerance Class (TCTR) | 6HX |
| Cutting Edge Material | HSSE-PM |
| Tap Standard | DIN |
| Cutting Direction (HAND) | Right Hand |
