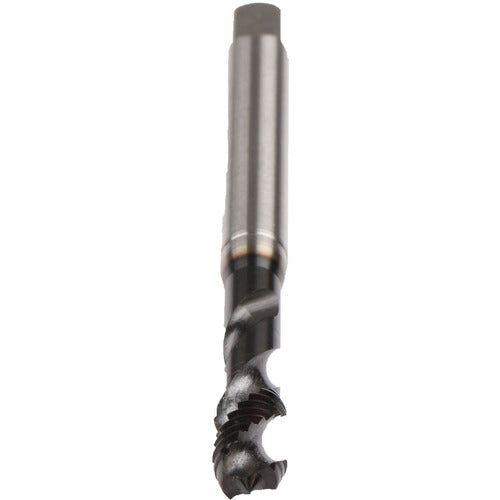

1/2-20-ENORM AL-BOTT-GLT8
Item #: ER4550S8005047
Brand: EMUGE-FRANKEN
Model #: CU50S800.5047
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/2″ |
| Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 20 |
| Standard | DIN | ANSI |
| Thread Standard | UNF |
| Tool Type | Enorm AL |
| Overall Length (OAL) | 3.937″ |
| Chamfer | 2P-3P |
| Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Coating | GLT-8 |
| Flute Helix Angle (FHA) | 45 Degrees |
| Flute Type | Spiral |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSSE |
| Coolant Supply Property (CSP) | External |
