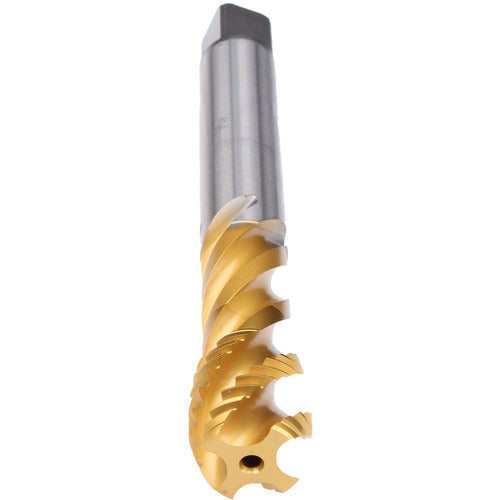

M18X1.5-TAP-ENORMZ-IKZ
Item #: ER453650F010390
Brand: EMUGE-FRANKEN
Model #: C3650F01.0390
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M18 |
| Standard | DIN |
| Thread Pitch (TP) | 1.5 mm |
| Tool Type | Enorm - Speed |
| Thread Standard | Metric |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 110 mm |
| Coating | TiN-60 |
| Connection Diameter Machine Side (DCONMS) | 14 mm |
| Flute Type | Spiral |
| Flute Helix Angle (FHA) | 45 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Universal Materials |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | HSS-E PM |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6HX |
