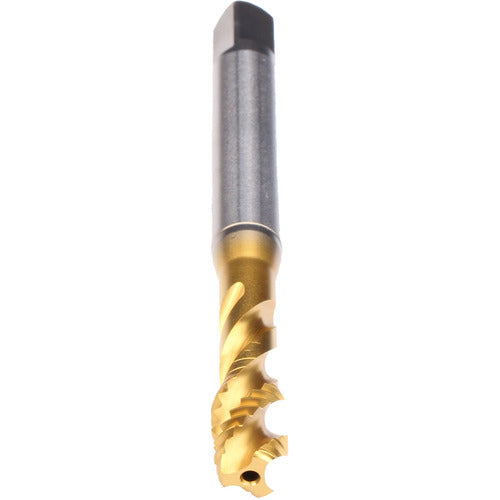

M10-TAP-ENORM ZSPEED-CLNT
Item #: ER453650F010100
Brand: EMUGE-FRANKEN
Model #: B3650F01.0100
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M10 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 1.5 mm |
| Standard | DIN |
| Thread Standard | Metric |
| Tool Type | Rekord B-Speed |
| Overall Length (OAL) | 100 mm |
| Chamfer | 2P-3P |
| Usable Length (LU) | 39 mm |
| Coating | TiN-60 |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Flute Type | Spiral |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees |
| Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | Universal Materials |
| Measurement Type | Metric |
| Cutting Edge Material | HSS-E PM |
