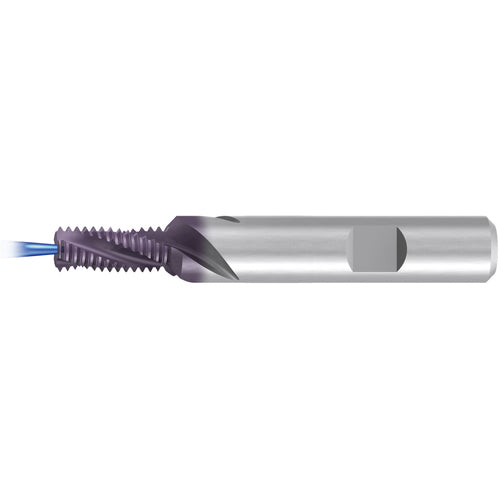

7/16-20 2XD GSF Aero TICN Thread Mill
Item #: ER4517011
Brand: EMUGE-FRANKEN
Model #: GF335106.5046
| Product Specifications | |
|---|---|
| Thread Size | 7/16″ |
| Coating | TiCN |
| Threads per Inch (TPI) | 20 |
| Applicable Material | Stainless Steel | Super-Alloys / Titanium |
| Thread Standard | UNF |
| Flute Helix Angle (FHA) | 15 Degrees |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.376″ |
| Flute Type | Spiral |
| Overall Length (OAL) | 3.15″ |
| Usable Length (LU) | 0.878″ |
| Flute Count (NOF) | 3 |
| Length Group | 2xD |
| Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | Thread Mill |
| Shank Type | HB |
| Cutting Direction (HAND) | Right Hand | Left Hand |
