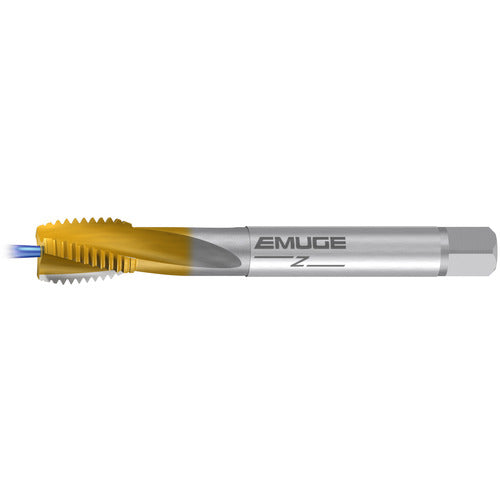

M 8X1-6HX REK.2D-Z-BF-IKZ TIN
Item #: ER4514774
Brand: EMUGE-FRANKEN
Model #: C4253701.0251
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Standard | DIN |
| Thread Size | M8 × 1 |
| Tool Type | Rekord D-Z-BF |
| Thread Diameter Size (TDZ) | M8 |
| Applicable Material | Cast Iron |
| Thread Pitch (TP) | 1 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Thread Tolerance Class (TCTR) | 6HX |
| Flute Helix Angle (FHA) | 15 Degrees |
| Overall Length (OAL) | 90 mm |
| Cutting Direction (HAND) | Right Hand |
| Chamfer | 2P-3P |
| Coolant Supply Property (CSP) | Coolant Thru |
| Coating | TiN |
| Series/List # | 4253701 |
| Cutting Edge Material | HSS-E |
