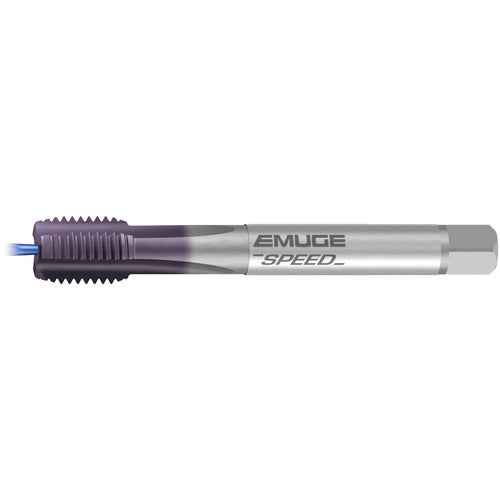

M 16X1.5 6HX REK.2A-S/E-IKZ TIC
Item #: ER4514675
Brand: EMUGE-FRANKEN
Model #: C3169401.0359
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M16 |
| Standard | DIN |
| Thread Pitch (TP) | 1.5 mm |
| Tool Type | Rekord A/E-Speed |
| Thread Standard | Metric |
| Chamfer | 1.5P-2P |
| Overall Length (OAL) | 100 mm |
| Coating | TiCN |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Flute Type | Straight |
| Flute Helix Angle (FHA) | 0 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Cast Iron |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | HSSE |
| Series/List # | 3169401 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Size | M16 × 1.5 |
