Brand: Widia / Part #: 3879849
Item #: 98777097
Brand: Widia
Model #: 3879849
Product Specifications
| Cutting Direction | Neutral |
| Hand of Holder | Neutral |
| Compatible Insert Size Code | 11T3.. |

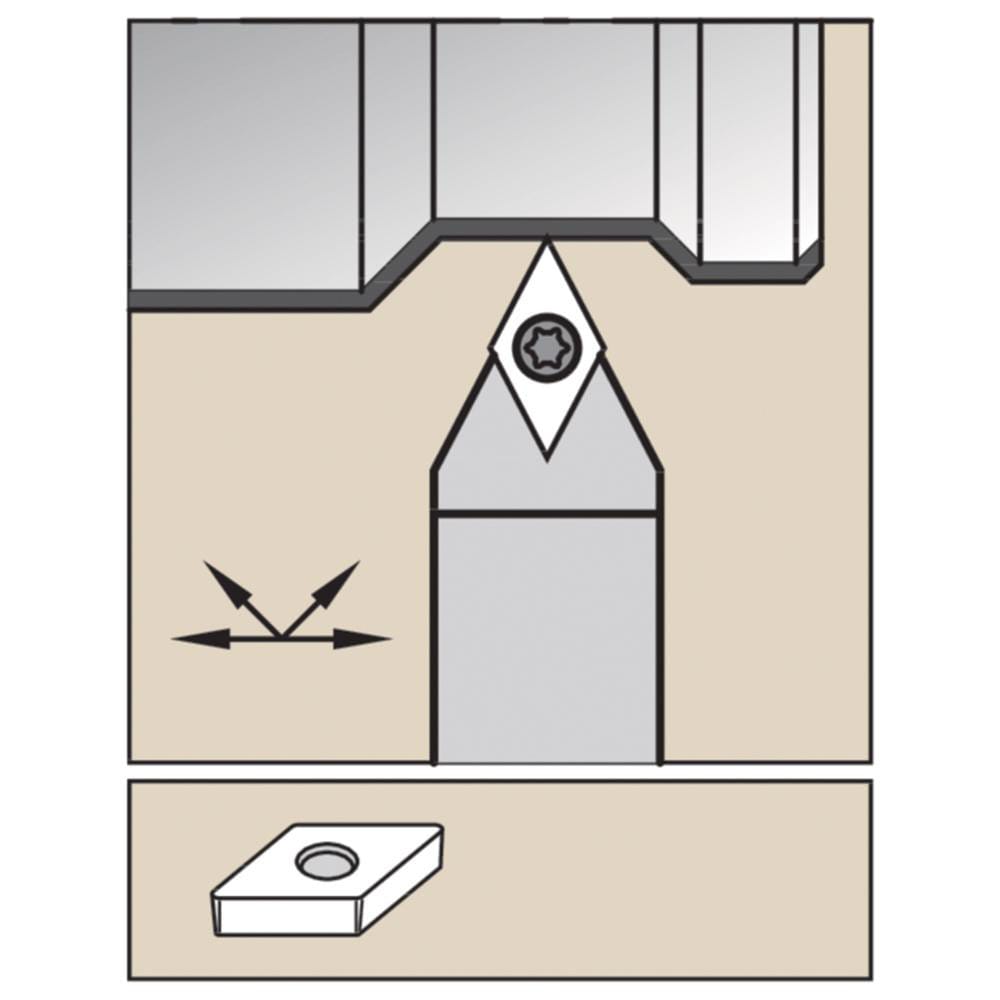

| Toolholder Style | SDNCN |
| Rake | Positive |
| Rake Angle | 0 (Axial);0 (Radial) |
| Multi-use Tool | Yes |
| Lead Angle | 62.500 |
| Insert Holding Method | Screw |
| Insert Compatibility | DC..11T3.. |
| Shank Width (mm) | 25.00 |
| Shank Height (mm) | 25.00 |
| Series | SDNC |
| Overall Length (mm) | 150.0000 |
| Cutting Tool Application | Copying; Turning |
| Head Length (mm) | 24.89 |
| Back of Bar to Cutting Edge (mm) | 12.50 |
| Primary Workpiece Material | Universal |
| Insert Width (mm) | 9.53 |
| Toolholder Material | Steel |
| ISO Number | SDNCN2525M11 |
| Complete Insert Compatibility | DC.. |
| Insert Thickness | 3.97 |
| Coolant Through | No |
| Insert Inscribed Circle (mm) | 9.53 |
