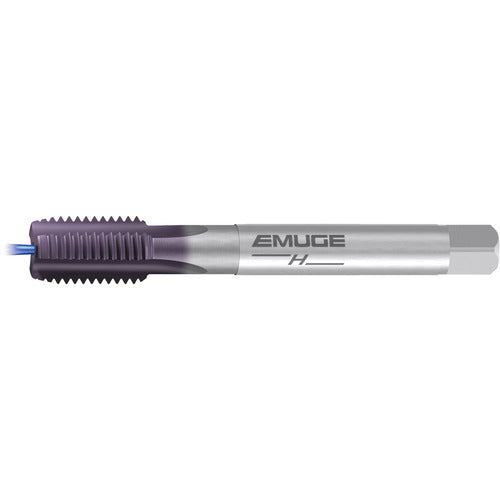

M 20X1.5-6HX REK.2A-H-IKZ TICN
Item #: ER4514581
Brand: EMUGE-FRANKEN
Model #: C1959101.0422
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M20 |
| Standard | DIN |
| Thread Pitch (TP) | 1.5 mm |
| Tool Type | Rekord A-H |
| Thread Standard | Metric |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 125 mm |
| Coating | TiCN |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Flute Type | Straight |
| Flute Helix Angle (FHA) | 0 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Cast Iron | Hard Materials |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | HSSE |
| Series/List # | 1959101 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Size | M20 × 1.5 |
