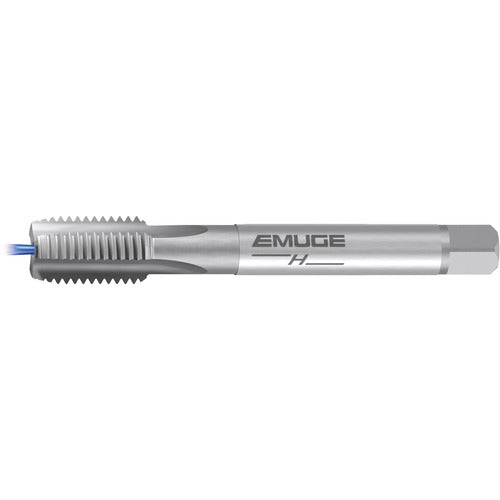

M 12-6H REK.2A-H-IKZ
Item #: ER4514555
Brand: EMUGE-FRANKEN
Model #: C1950501.0112
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M12 |
| Standard | DIN |
| Thread Pitch (TP) | 1.75 mm |
| Tool Type | Rekord A-H |
| Thread Standard | Metric |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 110 mm |
| Coating | NT |
| Connection Diameter Machine Side (DCONMS) | 9 mm |
| Flute Type | Straight |
| Flute Helix Angle (FHA) | 0 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Cast Iron | Hard Materials |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | HSSE |
| Series/List # | 1950501 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Size | M12 × 1.75 |
