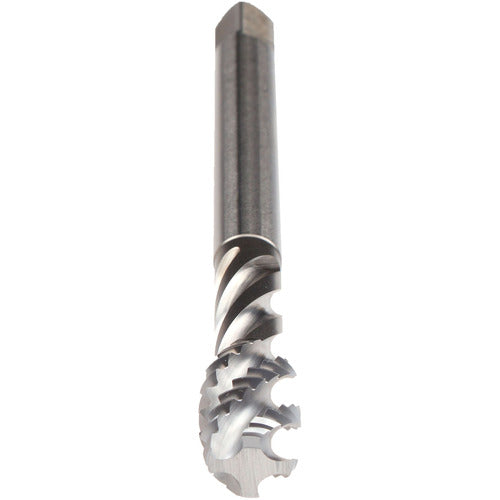

M 24X1.5-ISO3/6G 2ENORM-Z/E
Item #: ER4514318
Brand: EMUGE-FRANKEN
Model #: C0513520.0452
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M24 |
| Standard | DIN |
| Thread Pitch (TP) | 1.5 mm |
| Tool Type | Enorm Z |
| Thread Standard | Metric |
| Chamfer | 1.5P-2P |
| Overall Length (OAL) | 140 mm |
| Coating | Bright |
| Connection Diameter Machine Side (DCONMS) | 18 mm |
| Flute Type | Spiral |
| Flute Helix Angle (FHA) | 45 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Stainless Steel |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6G |
