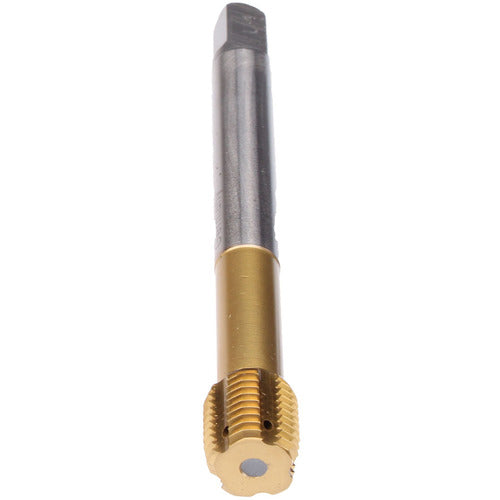

9/16-12 UNF 2BX 2DR-Z-OLN-IKZN
Item #: ER4513465
Brand: EMUGE-FRANKEN
Model #: CW10F000.5014
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 9/16″ |
| Thread Tolerance Class (TCTR) | 2BX |
| Threads per Inch (TPI) | 12 |
| Standard | DIN | ANSI |
| Thread Standard | UNC |
| Tool Type | Roll Form - Druck Z |
| Overall Length (OAL) | 110 mm |
| Chamfer | 2P-3P |
| Connection Diameter Machine Side (DCONMS) | 0.429″ |
| Coating | TiN-T1 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Universal Materials |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | HSSE |
| Measurement Type | Inch |
