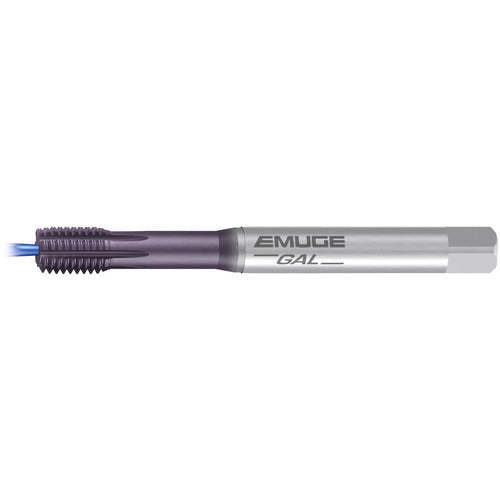

M 6-6HX IF1-GAL/E-SN-IKZ TIC
Item #: ER4512666
Brand: EMUGE-FRANKEN
Model #: B531Q200.0060
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Thread Diameter Size (TDZ) | M6 |
| Coating | TiCN |
| Thread Pitch (TP) | 1 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 80 mm |
| Chamfer | 1.5P-2P |
| Usable Length (LU) | 30 mm |
| Cutting Edge Material | HSSE-PM |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | 6HX |
| Series/List # | 531Q200 |
| Tap Standard | DIN |
| Thread Size | M6 × 1 |
| Thread Standard | Metric |
