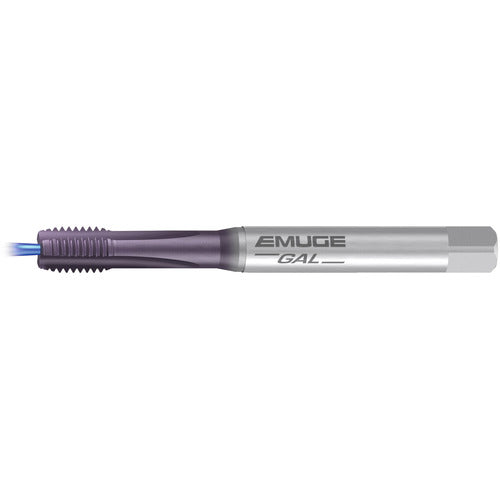

M 8 6HX REK.1A-GAL/E IKZ-TICN
Item #: ER4512442
Brand: EMUGE-FRANKEN
Model #: B1969501.0080
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M8 |
| Standard | DIN |
| Thread Pitch (TP) | 1.25 mm |
| Tool Type | Rekord A-GAL/E |
| Thread Standard | Metric |
| Chamfer | 1.5P-2P |
| Overall Length (OAL) | 90 mm |
| Coating | TiCN |
| Usable Length (LU) | 35 mm |
| Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 0 Degrees |
| Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Measurement Type | Metric |
| Cutting Edge Material | HSSE |
| Series/List # | 1969501 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Size | M8 × 1.25 |
