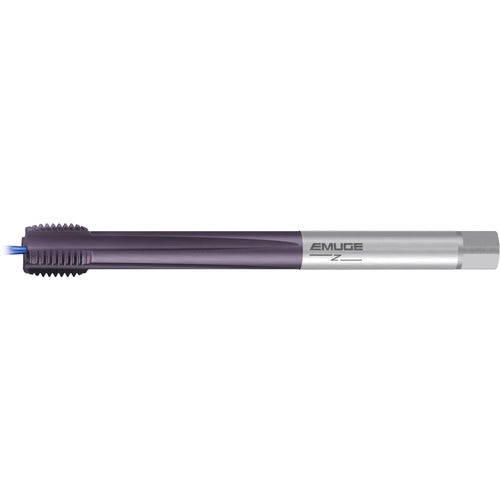

M42-TAP-REKA-Z-LG FL-CLNT
Item #: ER4505394010142
Brand: EMUGE-FRANKEN
Model #: C0539401.0142
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M42 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 4.5 mm |
| Tool Type | Rekord A-Z |
| Thread Standard | Metric |
| Standard | DIN |
| Overall Length (OAL) | 340 mm |
| Chamfer | 2P-3P |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Coating | TiCN |
| Flute Helix Angle (FHA) | 0 Degrees |
| Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | Cast Iron |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSSE |
| Flute Type | Straight |
