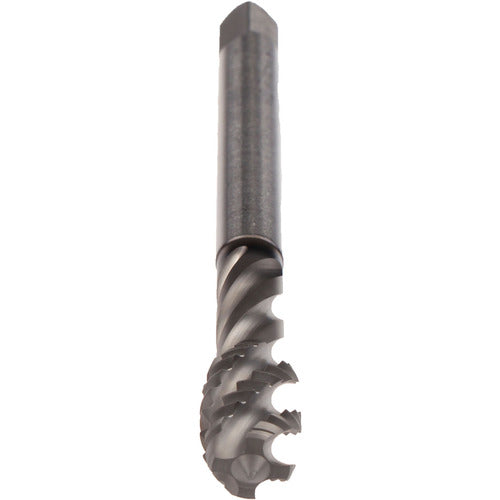

STI-M10-TAP-ENORM ZE-GLT1
Item #: ER450514000975
Brand: EMUGE-FRANKEN
Model #: C051C400.0975
| Product Specifications | |
|---|---|
| Tool Type | STI Tap |
| Coolant Supply Property (CSP) | External |
| Style | Bottoming |
| Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | M10 |
| Flute Helix Angle (FHA) | 45 Degrees |
| Thread Tolerance Class (TCTR) | 6H mod |
| Thread Pitch (TP) | 1.5 mm |
| Thread Standard | Metric |
| Flute Type | Spiral |
| Overall Length (OAL) | 100 mm |
| Measurement Type | Metric |
| Cutting Edge Material | HSSE |
| Connection Diameter Machine Side (DCONMS) | 9 mm |
| Flute Count (NOF) | 5 |
| Standard | DIN |
| Applicable Material | Steel | Stainless Steel |
| Series/List # | 051C400 |
| Chamfer | 1.5P-2P |
| Thread Size | M10 × 0.64 |
| Coating | GLT-1 |
