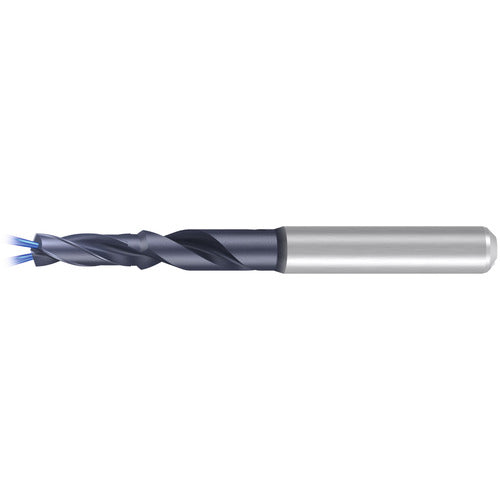

5.6X15MM STEP DRL W/CLNT
Item #: ER4503344056015
Brand: EMUGE-FRANKEN
Model #: TG203344.056015
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 5.6 mm |
| Number of Steps | 1 |
| Decimal Equivalent | 0.2205 |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.6 mm |
| Coating | TiAlN-T14 |
| Cutting Diameter Minimum (DCN) | 5.6 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 40 mm |
| Measurement Type | Metric |
| Usable Length (LU) | 15 mm |
| Shank Standard | HA |
| Shank Size (SS) | 8 mm |
| Shank Type | Cylindrical |
| Overall Length (OAL) | 79 mm |
| Step Diameter Length (SDL) | 15 mm |
| Point Angle (SIG) | 140 Degrees |
| Tool Type | Carbide EF Step Drill |
| Flute Count (NOF) | 2 |
| Series/List # | G203344 |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Cutting Direction (HAND) | Right Hand |
