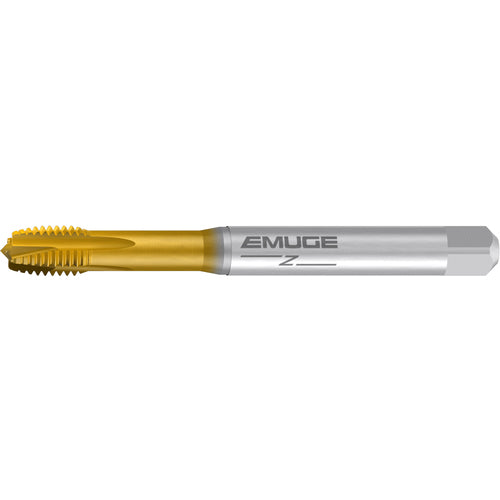

M20-TAP-REKORD B-Z-PM
Item #: ER450208F010120
Brand: EMUGE-FRANKEN
Model #: C0208F01.0120
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Standard | DIN |
| Thread Size | M20 × 2.5 |
| Tool Type | Rekord B-Z |
| Thread Diameter Size (TDZ) | M20 |
| Applicable Material | Steel | Cast Iron |
| Thread Pitch (TP) | 2.5 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Thread Tolerance Class (TCTR) | 6HX |
| Flute Helix Angle (FHA) | 0 Degrees |
| Overall Length (OAL) | 140 mm |
| Style | Spiral Point |
| Chamfer | 4P-5P |
| Cutting Direction (HAND) | Right Hand |
| Coating | TiN |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS-E PM |
| Series/List # | 0208F01 |
