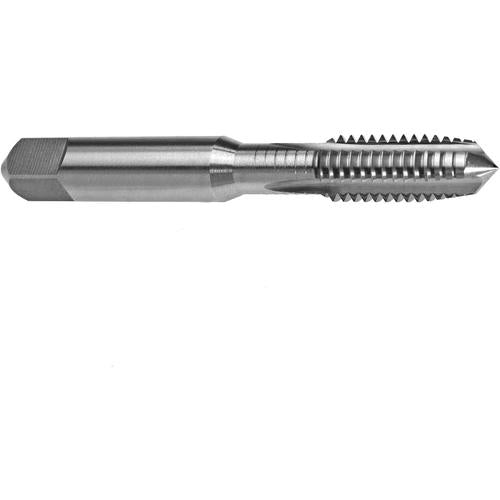

M8X1.25 3FL D-5 CNC DESIGN PLUG METRIC TAPS 403VM
Item #: EP4086052
Brand: Reiff & Nestor
Model #: 86052
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M8 |
| Tool Type | Hand Tap |
| Thread Pitch (TP) | 1.25 mm |
| Chamfer | Plug |
| Thread Standard | NF |
| Coating | Bright |
| Overall Length (OAL) | 2-23/32″ |
| Drive Size (DRVS) | 0.238″ |
| Thread Cutting Part Length (THL) | 11/16″ |
| Flute Type | Straight Flute |
| Usable Length (LU) | 1-1/4″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 0.238″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Square Size | 11/16″ + 9/16″ NECK × 0.238″ |
| Flute Helix Angle (FHA) | 0 Degrees |
| Standard Pack Size | 12 |
| Cutting Edge Material | HSS |
| Series/List # | 403VM |
| Thread Tolerance Class (TCTR) | D5 |
| Thread Size | M8 × 1.25 |
