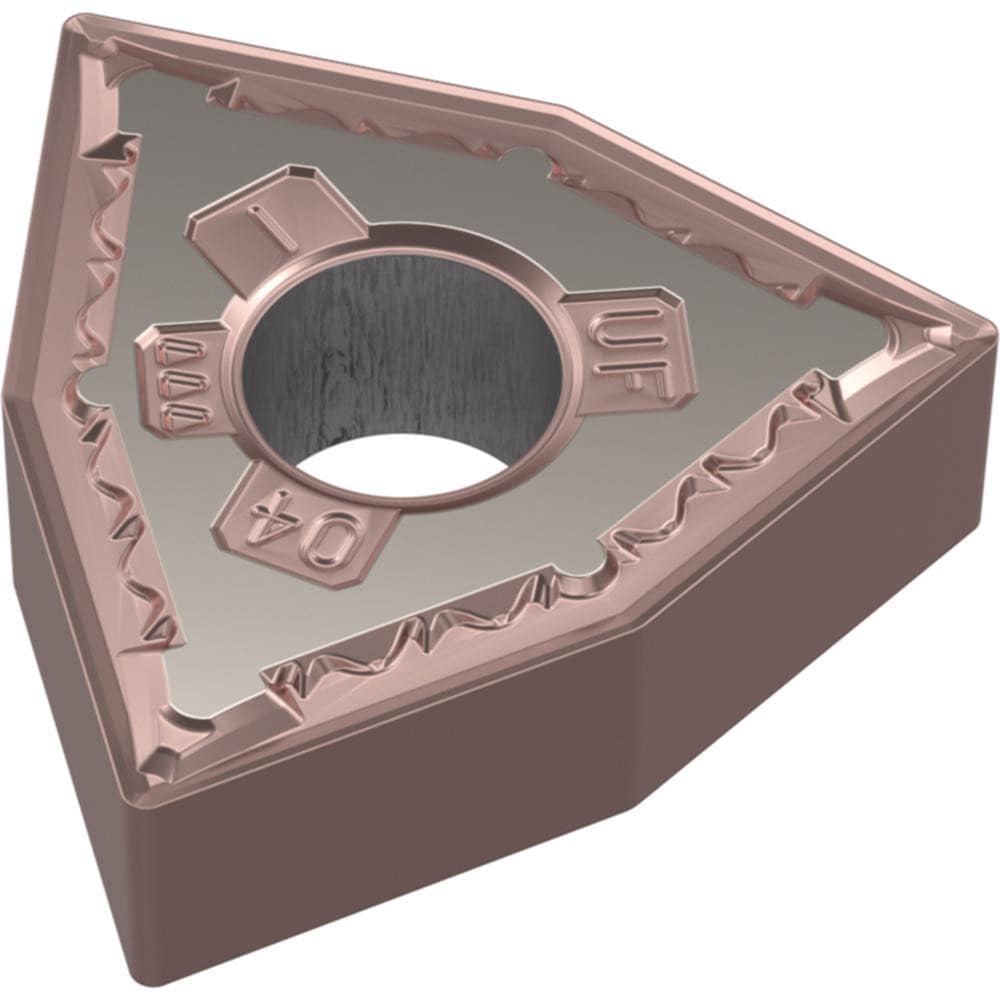

Brand: Widia / Part #: 4169402

Brand: Widia / Part #: 4169402


Item #: 95876124
Brand: Widia
Model #: 4169402

Product Specifications

Insert Style WNMG
Insert Shape Code W
Insert Size Code 431
Insert Shape Trigon
Coating/Finish TiOCN; TiCN; TiN; Al2O3
Manufacturer Grade WM25CT
Corner Radius (Decimal Inch) 0.0157
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2031
Maximum Depth of Cut (Decimal Inch) 0.1710
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 80.00
Relief Angle 0.000
Series WNMG
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.3420
Number Of Cutting Edges 6
Primary Workpiece Material Stainless Steel
Primary Workpiece Material Code M
Secondary Workpiece Material Super-alloys & Titanium; Steel
Secondary Workpiece Material Code P; S
Ansi Code WNMG431UF
Iso Code WNMG080404UF
Manufacturers Catalog Number WNMG431UF
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker UF
Style WNMG
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$7.34
