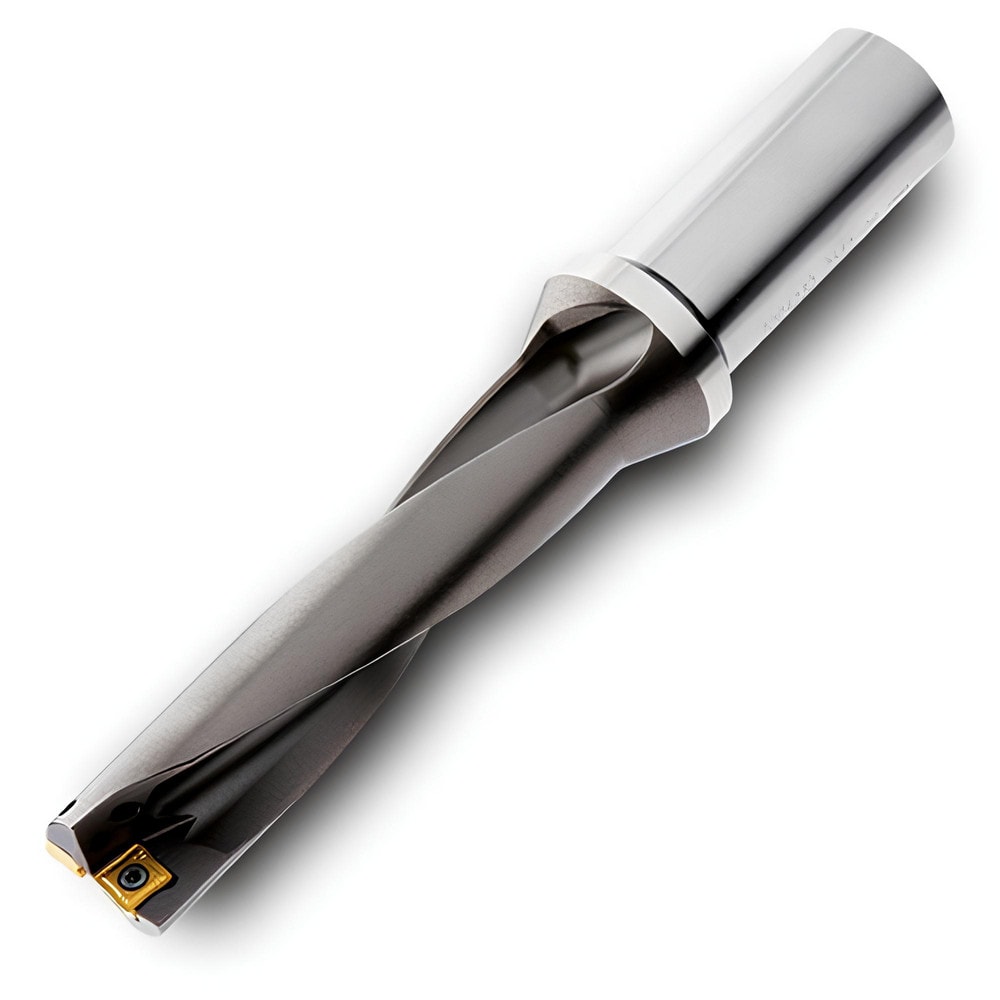

Brand: Ingersoll Cutting Tools / Part #: 3212437
Item #: 20809471
Brand: Ingersoll Cutting Tools
Model #: 3212437
Product Specifications
| Maximum Drill Depth | 78.00 mm |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Depth of Cut (mm) | 78.00 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 63/64 |
| Cutting Direction | Right Hand |
| Drill Body Length to Flange (mm) | 99.00 |
| Toolholder Style | QR02 |
| Nose Diameter (Mm) ( - 2 Decimals) | 26.00 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.0240 |
| Overall Length (mm) | 155.0000 |
| Overall Length | 155.00 |
| Through Coolant | Yes |
| Series | QR |
| Flute Length (mm) | 78.00 |
| Shank Length (mm) | 56.000 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Flute Type | Slow Spiral |
| Maximum Cutting Diameter (mm) | 26.00 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0240 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
