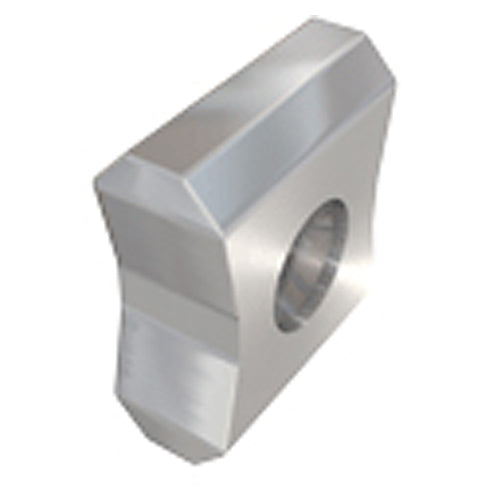

LNHW 1506 ANTN IS8
Item #: EH575697672
Brand: Iscar
Model #: 5697672
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | |
| Grade | IS8 |
| Application | | Facing | Milling Inserts | Slanted Shoulder & Chamfer | |
| Shape | 90° Rectangular |
| Insert Length (INSL) | 0.602″ |
| Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Corner Radius (RE) | 0.0315″ |
| Cutting Edge Material | Ceramic |
| Depth of Cut Maximum (APMX) | 0.118″ |
| Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.236″ |
| Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Thickness (S) | 0.508″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees |
| Body Material | Carbide |
| Coating | Uncoated |
