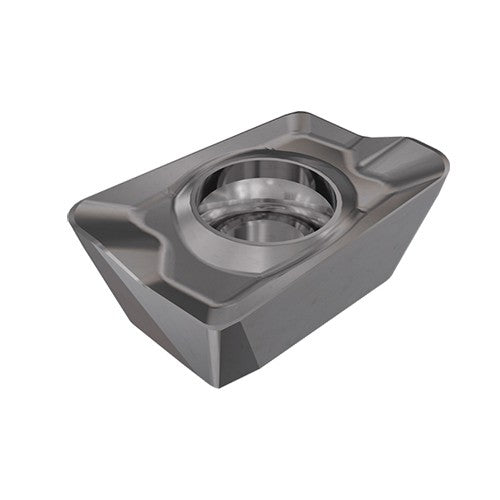

ADKT 150516R-HM IC910
Item #: EH5695759
Brand: Iscar
Model #: 5695759
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Cast Iron | |
| Shape | 85° Parallelogram |
| Application | | Bottom Shouldering | Counter Boring | Countersinking | Drill Mill | Facing | Milling Inserts | Plunging & Recessing | Rampdown | Shouldering | Side Slotting | Slanted Shoulder & Chamfer | Slotting | T Slotting | |
| Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Cutting Edge Length (L) | 0.614″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.614″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.063″ |
| Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.472″ |
| Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Width (W1) | 0.377″ |
| Cutting Edge Effective Length (LE) | 0.545″ |
| Insert Thickness (S) | 0.22″ |
| Measurement Type | Inch |
| Coating | AlTiN |
| Body Material | Carbide |
| Grade | IC910 |
