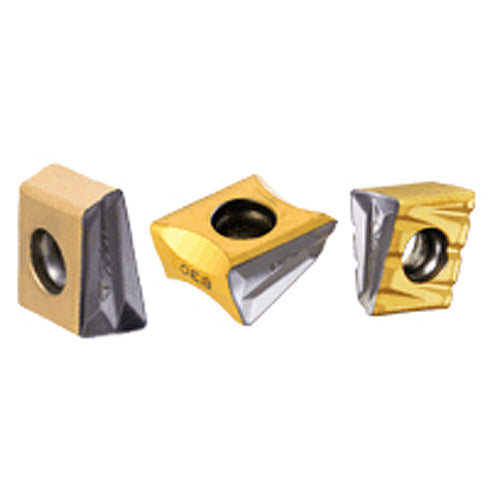

T490 LNMT 1306PNTR IC328
Item #: EH5695747
Brand: Iscar
Model #: 5695747
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Shape | 90° Rectangular |
| Application | | Bottom Shouldering | Facing | Milling Inserts | Rampdown | Shouldering | Side Slotting | Slanted Shoulder & Chamfer | Slotting | |
| Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Insert Length (INSL) | 0.541″ |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0335″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.492″ |
| Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.262″ |
| Figure | 1. |
| Insert Thickness (S) | 0.514″ |
| Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees |
| Measurement Type | Inch |
| Coating | TiCN |
| Body Material | Carbide |
| Grade | IC328 |
