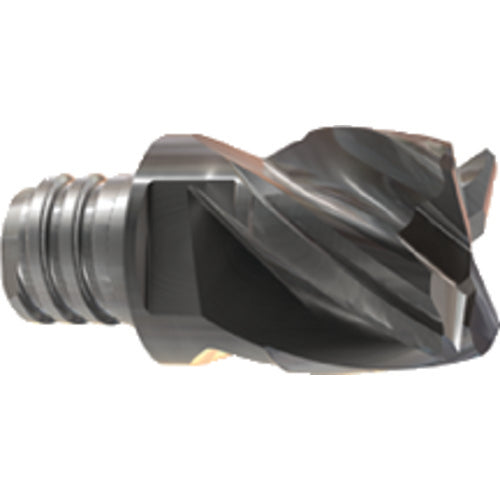

MM EC120E09R15CF-4T08 IC908
Item #: EH5681457
Brand: Iscar
Model #: 5681457
| Product Specifications | |
|---|---|
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Grade | IC908 |
| Cutting Diameter (DC) | 0.472″ |
| Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 0.059″ |
| Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 |
| fz(max) | 0.0043 ″/tooth |
| Cutting Diameter Maximum (DCX) | 0.472″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.354″ |
| Ramping Angle Maximum (RMPX) | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.461″ |
| Tool Type | Solid carbide center cutting endmills 90° |
| Functional Length (LF) | 0.65″ |
| Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees |
| Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 0.963″ |
