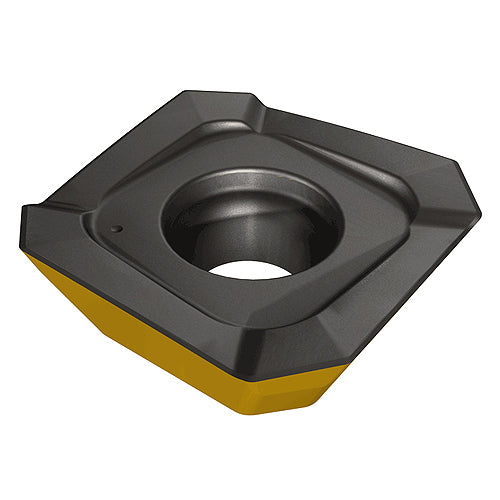

SEMT 140405ATR IC810
Item #: EH5668053
Brand: Iscar
Model #: 5668053
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Cast Iron | |
| Shape | 90° Square |
| Application | | Facing | Milling Inserts | Slanted Shoulder & Chamfer | |
| Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Insert Length (INSL) | 0.559″ |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0197″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.217″ |
| Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.195″ |
| Minimum Feed per Tooth (fz(min)) | 0.0047 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees |
| Measurement Type | Inch |
| Coating | AlTiCrN+TiN |
| Body Material | Carbide |
| Grade | IC810 |
