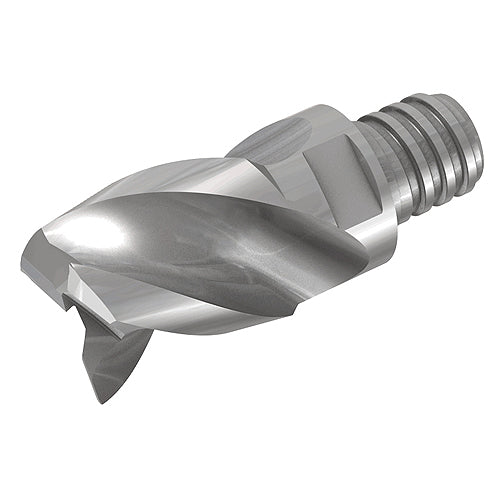

MM EA100H10R0CF-4T06 IC08
Item #: EH5667106
Brand: Iscar
Model #: 5667106
| Product Specifications | |
|---|---|
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Grade | IC08 |
| Cutting Diameter (DC) | 0.394″ |
| Coating | Uncoated |
| Applicable Material | | Non Ferrous Metals | |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Corner Radius (RE) | 0″ |
| fz(max) | 0.0039 ″/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 |
| Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 0.394″ |
| End Shape | 90° Alum |
| Depth of Cut Maximum (APMX) | 0.394″ |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.378″ |
| Tool Type | Solid carbide center cutting endmills 90° |
| Functional Length (LF) | 0.748″ |
| Body Material | Carbide |
| Flute Helix Angle (FHA) | 40 Degrees |
| Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 1.01″ |
