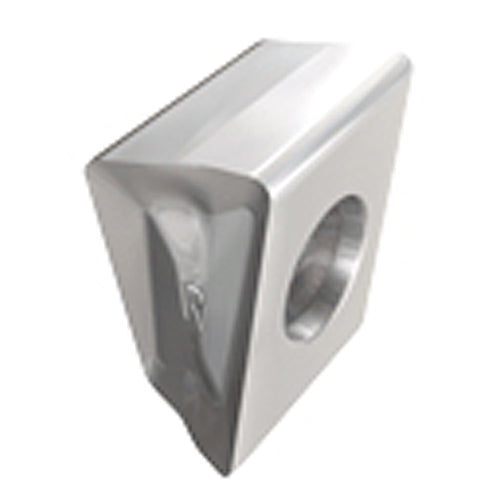

T490 LNAR 0804PN-R-P IC07
Item #: EH5666820
Brand: Iscar
Model #: 5666820
| Product Specifications | |
|---|---|
| Applicable Material | | Stainless Steel | Non Ferrous Metals | Hi Temp Alloys | |
| Grade | IC07 |
| Application | | Facing | Milling Inserts | Shouldering | Slanted Shoulder & Chamfer | Slotting | |
| Shape | 90° Rectangular |
| Insert Length (INSL) | 0.339″ |
| Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Corner Radius (RE) | 0.0157″ |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.315″ |
| Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.167″ |
| Tool Type | Mill Tangential Inserts |
| Insert Thickness (S) | 0.295″ |
| Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees |
| Measurement Type | Inch |
| Coating | Uncoated |
| Body Material | Carbide |
