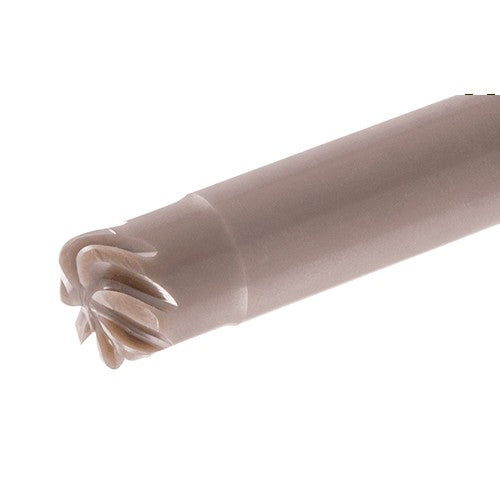

EC-E3 06-06/15C06R.4N50CE IS35
Item #: EH565877467
Brand: Iscar
Model #: 5877467
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 6 mm |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Corner Radius (RE) | 0.42 mm |
| Depth of Cut Maximum (APMX) | 6 mm |
| Ramping Angle Maximum (RMPX) | 3 Degrees |
| Overall Length (OAL) | 50 mm |
| Grade | IS35 |
| Cutting Edge Material | Ceramic |
| Neck Diameter (DN) | 5.5 |
| Flute Count (NOF) | 3 |
| Head Length (LH) | 15 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Maximum Feed per Tooth (fz(max)) | 0.03 mm/tooth |
| Shank Type | Round |
| Minimum Feed per Tooth (fz(min)) | 0.02 mm/tooth |
| End Shape | Corner Radius |
| Body Material | Carbide |
| Usable Length (LU) | 14.5 mm |
| Measurement Type | Metric |
| Applicable Material | | Hi Temp Alloys | |
| Connection Code Machine Side (CCMS) | Cylindrical |
