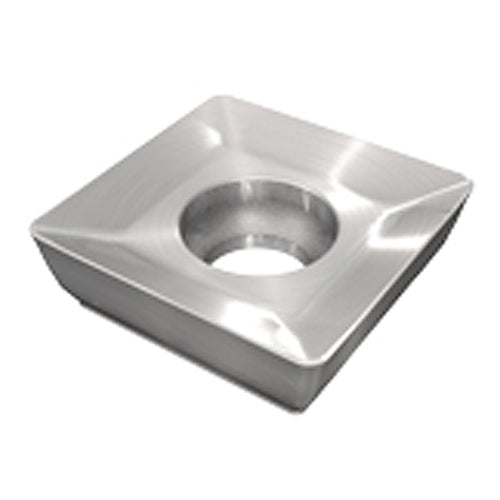

SDMT 1205PDR-RM-MM IC328
Item #: EH563408020
Brand: Iscar
Model #: 3408020
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Grade | IC328 |
| Application | | Facing | Milling Inserts | Shouldering | Slotting | |
| Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Insert Length (INSL) | 0.502″ |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0315″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.394″ |
| Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.197″ |
| Minimum Feed per Tooth (fz(min)) | 0.0027 ″/tooth |
| Wiper Edge Length (BS) | 0.063″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees |
| Body Material | Carbide |
| Coating | TiCN |
