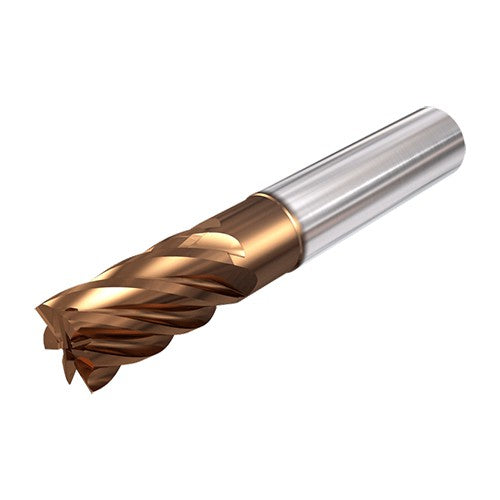

ECI-6 500-875/2.125C0VF4 IC608
Item #: EH563407060
Brand: Iscar
Model #: 3407060
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Application | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Corner Radius (RE) | 0″ |
| Depth of Cut Maximum (APMX) | 7/8″ |
| Grade | IC608 |
| Overall Length (OAL) | 4″ |
| Tool Type | Solid carbide non center cutting endmills 90 Degrees |
| Cutting Edge Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.0044 ″/tooth |
| Coating | AlTiCrSiN |
| Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Count (NOF) | 6 |
| Body Material | Carbide |
| Shank Type | Round |
| Decimal Equivalent | 0.5″ |
| End Shape | Corner Radius |
| Measurement Type | Inch |
| Usable Length (LU) | 2-1/8″ |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
