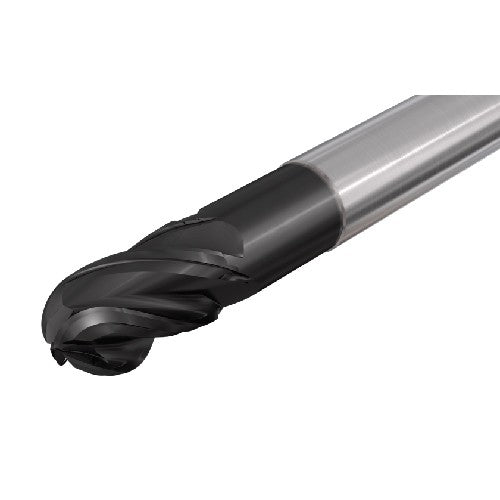

EBI-4 625-1.0/4.0WVF6 IC608
Item #: EH563401312
Brand: Iscar
Model #: 3401312
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Application | | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Slotting | |
| Depth of Cut Maximum (APMX) | 1″ |
| Corner Radius (RE) | 5/16″ |
| Overall Length (OAL) | 6″ |
| Grade | IC608 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid ball nose |
| Coating | AlTiCrSiN |
| Body Material | Carbide |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.625″ |
| Shank Type | Weldon |
| Measurement Type | Inch |
| Usable Length (LU) | 4″ |
| Connection Code Machine Side (CCMS) | Weldon |
