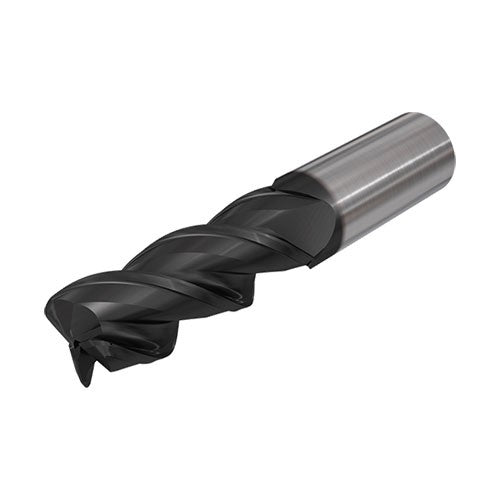

ECAI-B3 .625-1.5CR125-6EC IC1508
Item #: EH563399206
Brand: Iscar
Model #: 3399206
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Applicable Material | | Non Ferrous Metals | |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Application | Helical Interpolation | Rampdown | Shouldering | Slotting |
| Depth of Cut Maximum (APMX) | 1-1/2″ |
| Corner Radius (RE) | 1/8″ |
| Overall Length (OAL) | 6″ |
| Grade | IC1508 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide center cutting endmills 90 Degrees |
| Coating | DLC |
| Maximum Feed per Tooth (fz(max)) | 0.008 ″/tooth |
| Flute Count (NOF) | 3 |
| Minimum Feed per Tooth (fz(min)) | 0.003 ″/tooth |
| Shank Type | Round |
| Body Material | Carbide |
| End Shape | Corner Radius |
| Decimal Equivalent | 0.625″ |
| Usable Length (LU) | 1-1/2″ |
| Measurement Type | Inch |
