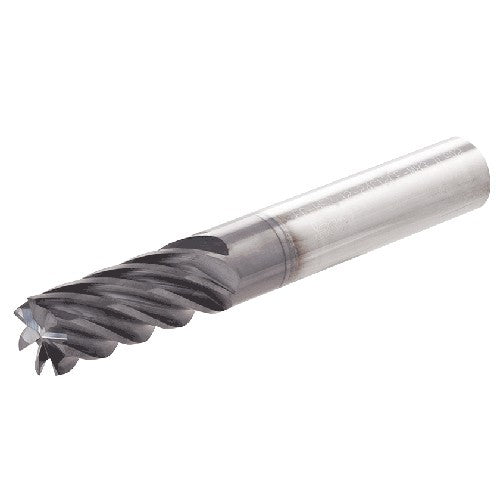

ECI-H7R 750-4.7C123CF7.87 IC602
Item #: EH563385191
Brand: Iscar
Model #: 3385191
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Application | Finishing | Helical Interpolation | Rampdown | Shouldering |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Corner Radius (RE) | 0.123″ |
| Depth of Cut Maximum (APMX) | 4.7″ |
| Ramping Angle Maximum (RMPX) | 3 Degrees |
| Overall Length (OAL) | 7.87″ |
| Grade | IC602 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide non center cutting endmills 90 Degrees |
| Coating | AlTiCCRSiN |
| Maximum Feed per Tooth (fz(max)) | 0.0051 ″/tooth |
| Flute Count (NOF) | 7 |
| Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Helix Angle (FHA) | 37 Degrees |
| Body Material | Carbide |
| Shank Type | Round |
| Decimal Equivalent | 0.75″ |
| End Shape | Corner Radius |
| Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Hi Temp Alloys | |
| Connection Code Machine Side (CCMS) | Cylindrical |
