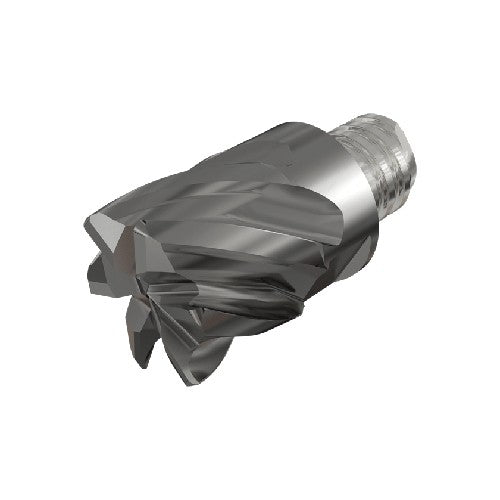

MM ECK250H22R10-6T15CF IC908
Item #: EH563363192
Brand: Iscar
Model #: 3363192
| Product Specifications | |
|---|---|
| Application | | Helical Interpolation | Rampdown | Shouldering | |
| Grade | IC908 |
| Cutting Diameter (DC) | 25 mm |
| Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 6 |
| Measurement Type | Metric |
| Corner Radius (RE) | 1 mm |
| fz(max) | 0.12 mm/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T15 |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 22 mm |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 23.9 mm |
| Tool Type | Solid carbide non center cutting endmills 90° |
| Functional Length (LF) | 37 mm |
| Body Material | Carbide |
| Flute Helix Angle (FHA) | 37 Degrees |
| Connection Code Machine Side (CCMS) | MultiMaster |
