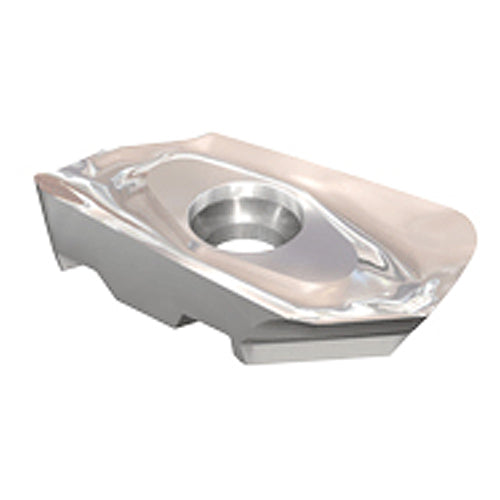

HM90 AXCR 150504R-P IC08
Item #: EH563358111
Brand: Iscar
Model #: 3358111
| Product Specifications | |
|---|---|
| Applicable Material | | Non Ferrous Metals | |
| Grade | IC08 |
| Application | | Facing | Milling Inserts | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Cutting Edge Length (L) | 0.756″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.756″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0157″ |
| Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 0.551″ |
| Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Width (W1) | 0.394″ |
| Cutting Edge Effective Length (LE) | 0.551″ |
| Insert Thickness (S) | 0.197″ |
| Measurement Type | Inch |
| Coating | Uncoated |
| Body Material | Carbide |
